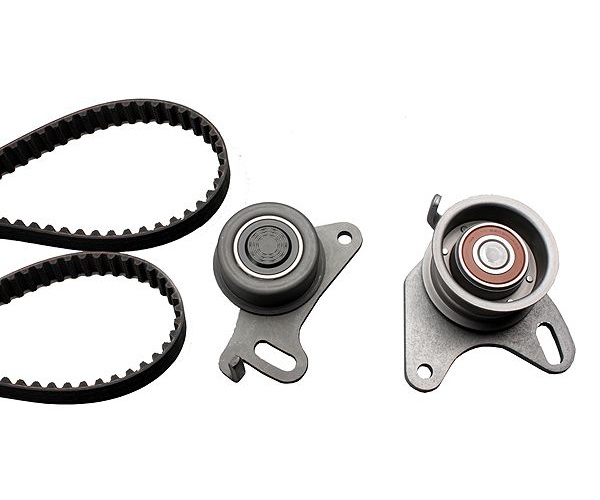

Name: HEPU 20-1235 Timing Belt Set – for MITSUBISHI, HYUNDAI
Brand: HEPU
SKU: HEPU201235
Price: 76.38 EUR
Availability: PreOrder

Part Number: 20-1235

Compatible with: HYUNDAI (GALLOPER, H100, PORTER), MITSUBISHI (GALANT, L, L200, PAJERO)

Brand: HEPU

€76.38

Shipping:21 September

Delivery Time: 24 – 26 September

Width [mm]: 25
Number of Teeth: 163
EAN: 4047753212355

Safety and product information:

Technical Data

Width [mm]	25
Number of Teeth	163
EAN	4047753212355

14-0198
	Outer Diameter [mm]	60
	Width [mm]	34
	Quantity	1
14-0199
	Outer Diameter [mm]	58
	Width [mm]	22,5
	Quantity	1
29-0201
	Number of Teeth	163
	Width [mm]	25
	Quantity	1
29-0247
	Number of Teeth	83
	Width [mm]	19
	Quantity	1

Modification	Years	Engine model	kW
MITSUBISHI 26
MITSUBISHI GALANT IV (A16_) 2.3 Turbo-D (A167) 4D55-T 62 kW	1980–1984	4D55-T	62 kW
MITSUBISHI GALANT IV Station Wagon (A16_V) 2.3 Turbo-D (A167V) 4D55-T 62 kW	1983–1984	4D55-T	62 kW
MITSUBISHI PAJERO I Canvas Top (L04_G) 2.3 TD (L043G, L048G) 4D55-T 62 kW	1982–1986	4D55-T	62 kW
MITSUBISHI PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G) 4D56-T 62 kW	1986–1989	4D56-T	62 kW
MITSUBISHI PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G) 4D56-T 64 kW	1987–1991	4D56-T	64 kW
MITSUBISHI PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G) 4D56-T 70 kW	1989–1990	4D56-T	70 kW
MITSUBISHI PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G) 4D56-T 70 kW	1989–1990	4D56-T	70 kW
MITSUBISHI L 300 / DELICA II Bus (L03_P/G, L0_2P) 2.3 D (L038P) 4D55 50 kW	1983–1986	4D55	50 kW
MITSUBISHI L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P05W, P15V) 4D56 (8V) 51 kW	1986–2006	4D56 (8V)	51 kW
MITSUBISHI L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W, P25W) 4D56 (8V) 51 kW	1986–2004	4D56 (8V)	51 kW
MITSUBISHI L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD 4WD (P25W, P35W) 4D56-T 64 kW	1987–2004	4D56-T	64 kW
MITSUBISHI PAJERO II Canvas Top (V2_C, V4_C) 2.5 TD 4WD (V24C) 4D56-TD 73 kW	1990–2000	4D56-TD	73 kW
MITSUBISHI PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.5 TD 4WD (V24W) 4D56-TD 73 kW	1990–1999	4D56-TD	73 kW
MITSUBISHI L200 (K3_T, K2_T, K1_T, K0_T) 2.5 TD 4WD (K34T) 4D56-T 64 kW	1992–1996	4D56-T	64 kW
MITSUBISHI L200 (K3_T, K2_T, K1_T, K0_T) 2.5 D (K14T) 4D56 (8V) 51 kW	1986–1996	4D56 (8V)	51 kW
MITSUBISHI L200 (K3_T, K2_T, K1_T, K0_T) 2.5 D 4WD (K24T) 4D56 (8V) 51 kW	1987–1993	4D56 (8V)	51 kW
MITSUBISHI L 300 / DELICA II Van (L03_P) 2.3 D (L038P, L068P) 4D55 50 kW	1983–1986	4D55	50 kW
MITSUBISHI L 300 / DELICA II Platform/Chassis (L03_P) 2.5 D (L039P) 4D56 (8V) 51 kW	1986–1994	4D56 (8V)	51 kW
MITSUBISHI L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 TD (P05W) 4D56-T 64 kW	1987–2003	4D56-T	64 kW
MITSUBISHI PAJERO II (V3_W, V2_W, V4_W, V5_W) 2.5 TDiC (V44W, V24W) 4D56-T 73 kW	1991–1999	4D56-T	73 kW
MITSUBISHI PAJERO II Canvas Top (V2_C, V4_C) 2.5 TDiC (V24W, V24C) 4D56-T 73 kW	1991–1999	4D56-T	73 kW
MITSUBISHI L 300 III Van (P0_V, P1_V, P2_V) 2.5 TD 4WD (P25V) 4D56-T 64 kW	1991–2003	4D56-T	64 kW
MITSUBISHI PAJERO I (L04_G, L14_G) 2.3 TD (L043G, L048G) 4D55-T 62 kW	1982–1986	4D55-T	62 kW
MITSUBISHI L 300 III Bus (P0_W, P1_W, P2_W, P3_W) 2.5 D (P05W, P15W) 4D56 (8V) 55 kW	1991–2003	4D56 (8V)	55 kW
MITSUBISHI L 300 III Van (P0_V, P1_V, P2_V) 2.5 D (P05V, P15V) 4D56 (8V) 55 kW	1991–2003	4D56 (8V)	55 kW
MITSUBISHI PAJERO I (L04_G, L14_G) 2.5 TD 4WD (L049G, L149G) 4D56-T 62 kW	1986–1991	4D56-T	62 kW
HYUNDAI 10
HYUNDAI H100 Bus (P) 2.5 D D4BA 57 kW	1994–2000	D4BA	57 kW
HYUNDAI H100 Van 2.5 D D4BA 57 kW	1994–2000	D4BA	57 kW
HYUNDAI H100 Van 2.5 D D4BX 55 kW	1993–1994	D4BX	55 kW
HYUNDAI H100 Bus (P) 2.5 D D4BX 55 kW	1993–1994	D4BX	55 kW
HYUNDAI H100 Bus (P) 2.5 TD D4BF 59 kW	1993–2000	D4BF	59 kW
HYUNDAI GALLOPER I 2.5 TD 4D56-T 62 kW	1991–1998	4D56-T	62 kW
HYUNDAI GALLOPER I 2.5 TD intercooler 4D56-T 70 kW	1991–1998	4D56-T	70 kW
HYUNDAI PORTER Van 2.5 TD D4BA 57 kW	1994–2004	D4BA	57 kW
HYUNDAI PORTER Platform/Chassis 2.5 TD D4BA 57 kW	1994–2004	D4BA	57 kW
HYUNDAI H100 Platform/Chassis 2.5 D D4BA 57 kW	1993–1997	D4BA	57 kW

FIAT	6000608169
MITSUBISHI	MD050119 MD050125 MD050130 MD050135 MD050175 MD060461 MD099707 MD134377 MD152622 MD197153 MD329625 MD363481
HYUNDAI	2335642011 2335642200 2335742010 2335742020 2335742030 2431242101 2431742000 2431742010 2431742020 2335742000
KIA	2335642011 2335642200 2335742010 2335742020 2335742030 2431242101 2431742000 2431742010 2431742020

SPIDAN	0068313 0068314
Schaeffler LuK	5310231200 5310232200 5360032100 5360033100
HK	RS1235 S198 S199
RUVILLE	5731370 57313 57314
CONTINENTAL CTAM	CONTINENTAL CTAM CT517K1 CONTINENTAL CTAM CT714K1 CONTINENTAL CTAM CT517 CONTINENTAL CTAM CT714
GATES	K 015210 K 015222 K015210 K015222 GATES K025222
DAYCO	KTB 268 DAYCO KTB268 DAYCO 94012
SKF	VKMA 95010 SKF VKMA95010 SKF VKM75601 SKF VKM75612
HERTH+BUSS JAKOPARTS	J1115009 J1115044 HERTH+BUSS JAKOPARTS J1145008 J1145009
HUTCHINSON	HUTCHINSON KH131
QUINTON HAZELL	QBK415 QTT382 QTT383
FEBI BILSTEIN	FEBI BILSTEIN 10620 FEBI BILSTEIN 15279
INTERBRAKE	5310231 531023100 531023120 531023130 5310232 531023200 531023220 531023230 5360032 536003200 536003220 536003230 5360033 536003300 536003320 536003330
SNR	SNR KD473.00 SNR GT37300 SNR GT37304
Schaeffler INA	Schaeffler INA 530005310 Schaeffler INA 531023120 Schaeffler INA 531023220 536003210 536003310
IPD	20-1235 64-3705
SK	SK198320 SK199319
RPK	RPK199430 RPK200429
