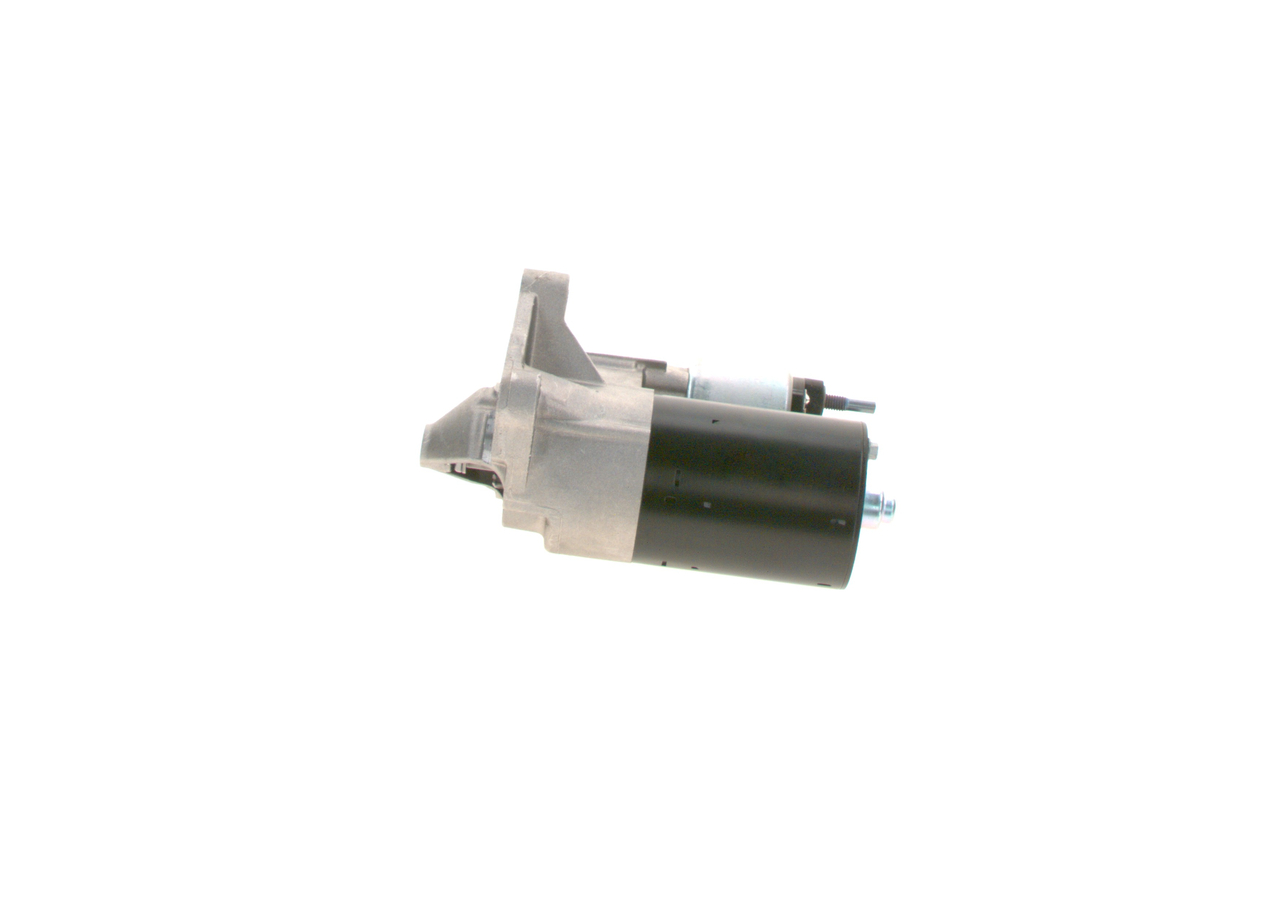

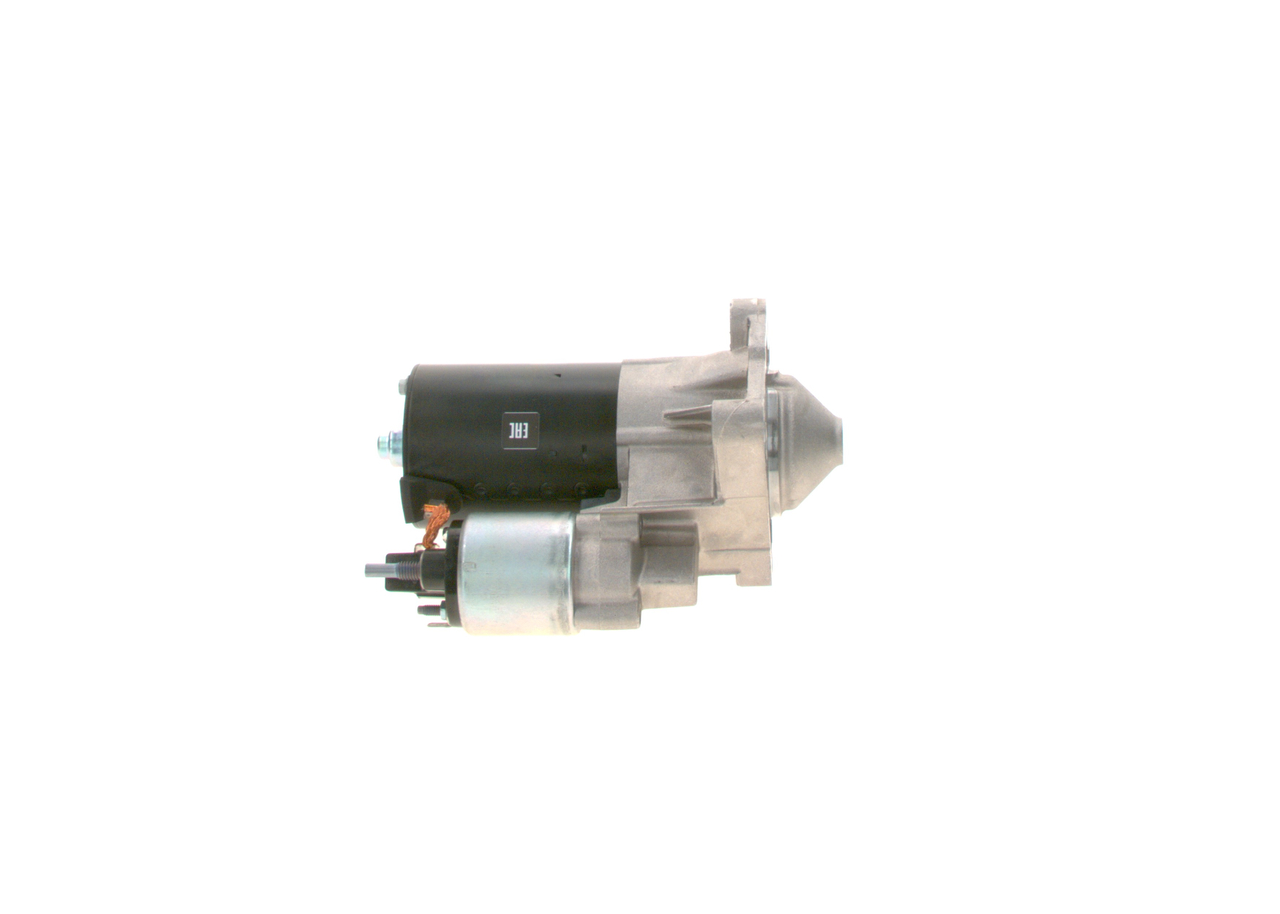

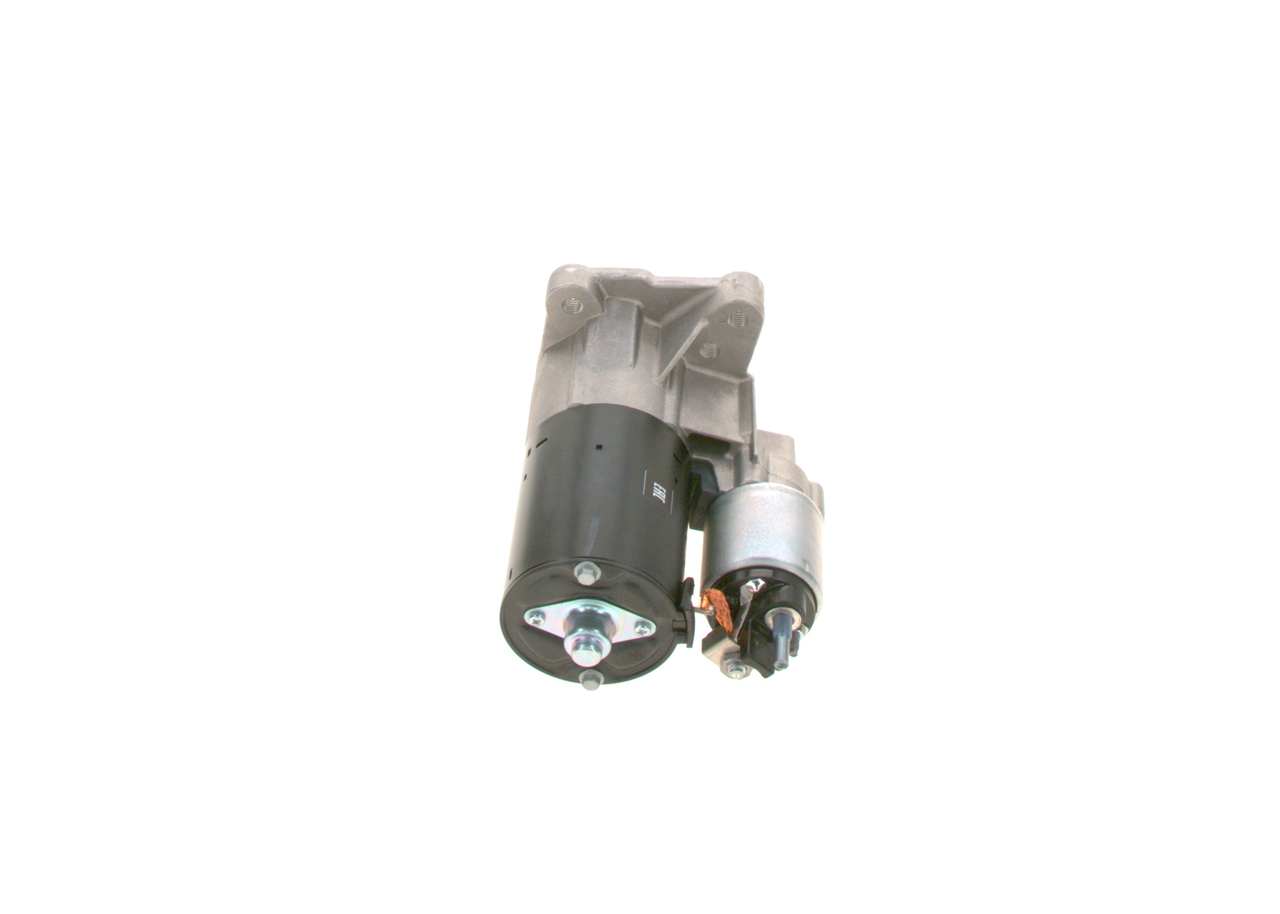

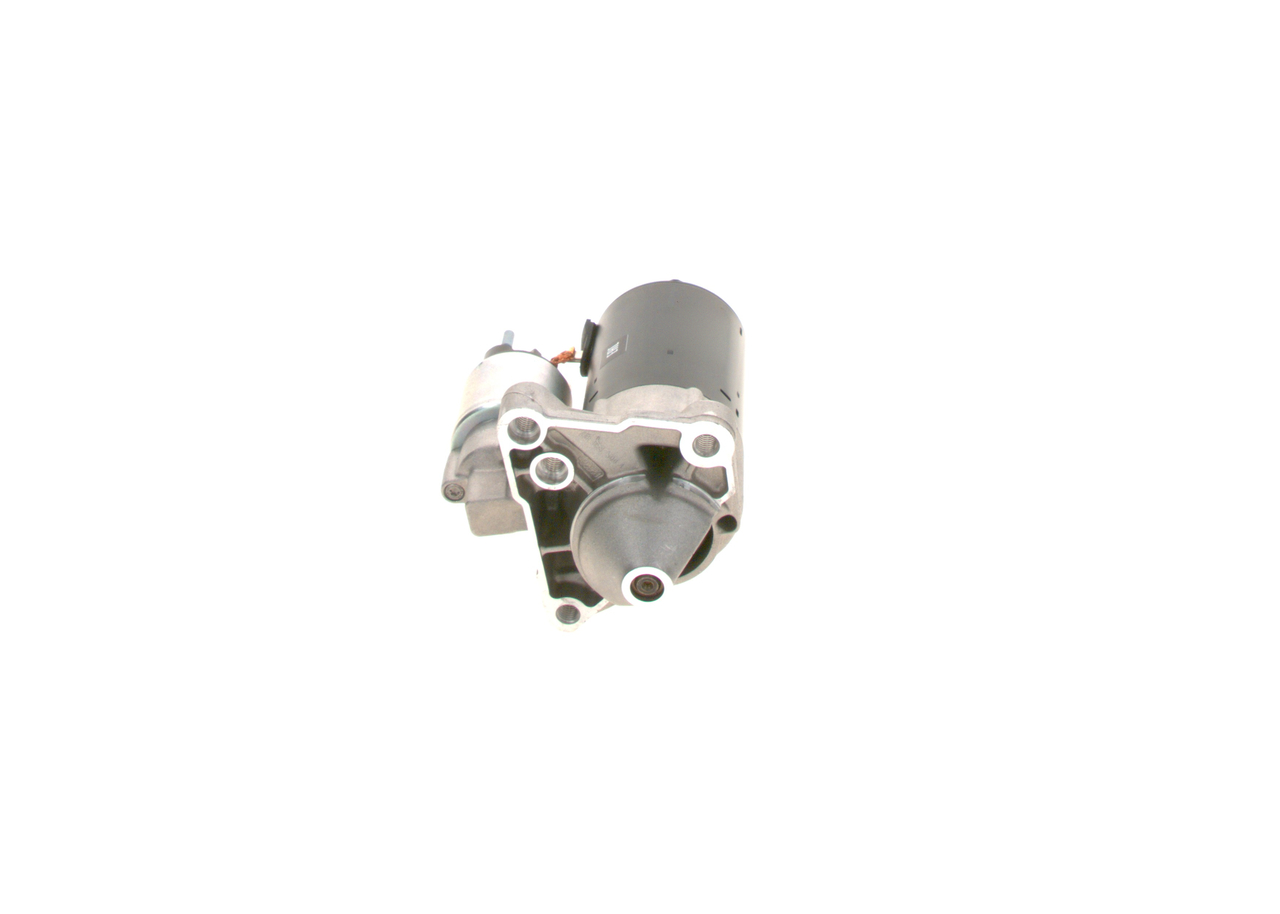

Name: BOSCH 0 001 106 017 Starter – for RENAULT
Brand: BOSCH
SKU: BOSCH0001106017
Price: 259.26 EUR
Availability: PreOrder

Part Number: 0 001 106 017

Compatible with: RENAULT (LAGUNA, MEGANE, SCÉNIC)

Brand: BOSCH

€259.26

Shipping:8 October

Delivery Time: 11 – 13 October

Pinion Rest Position [mm]: -0.5
Mounting bore angle measurement [Degree]: 56
Number of Teeth: 9
Thread Size: M10
Number of mounting bores:
Flange Ø [mm]: 66
Voltage [V]: 12
Mounting Angle [degrees]: 56
Rated Power [kW]: 0.9
Position/Degree: rechts
Length [mm]: 209
Rotation Direction: Clockwise rotation
Jaw opening angle measurement [Degree]: 143
Number of threaded holes: 4
Starter Type: Self-supporting
EAN: 3165143123638
Flange Diameter [mm]: 66
56
56
Clamp: 30, 50
4
Thread size 3: M10x1.5
Thread Size 1: M10x1.5
Thread Size 2: M10x1.5

Safety and product information:

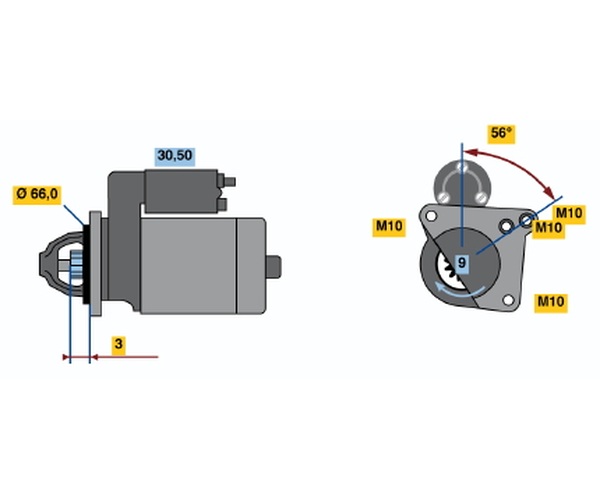

Technical Data

Pinion Rest Position [mm]	-0.5
Mounting bore angle measurement [Degree]	56
Number of Teeth	9
Thread Size	M10
Flange Ø [mm]	66
Voltage [V]	12
Mounting Angle [degrees]	56
Rated Power [kW]	0.9
Position/Degree	rechts
Length [mm]	209

Rotation Direction	Clockwise rotation
Jaw opening angle measurement [Degree]	143
Number of threaded holes	4
Starter Type	Self-supporting
EAN	3165143123638
Flange Diameter [mm]	66
Clamp	30, 50
Thread size 3	M10x1.5
Thread Size 1	M10x1.5
Thread Size 2	M10x1.5

Modification	Years	Engine model	kW
RENAULT 14
RENAULT SCÉNIC I MPV (JA0/1_, FA0_) 2.0 16V (JA1D, JA17) F4R 740, F4R 744, F4R 741, F4R 746, F4R 747 103 kW	1999–2003	F4R 740, F4R 744, F4R 741, F4R 746, F4R 747	103 kW
RENAULT SCÉNIC I MPV (JA0/1_, FA0_) 2.0 16V RX4 F4R 744, F4R 746 102 kW	2000–2003	F4R 744, F4R 746	102 kW
RENAULT SCÉNIC I MPV (JA0/1_, FA0_) 2.0 16V (JA1B, JA1D, JA0C) F4R 740, F4R 744, F4R 741, F4R 746, F4R 747 102 kW	2000–2003	F4R 740, F4R 744, F4R 741, F4R 746, F4R 747	102 kW
RENAULT LAGUNA II (BG0/1_) 1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V) F4P 770, F4P 772 89 kW	2001–2005	F4P 770, F4P 772	89 kW
RENAULT LAGUNA II Grandtour (KG0/1_) 1.8 16V F4P 774, F4P 770 89 kW	2001–2005	F4P 774, F4P 770	89 kW
RENAULT LAGUNA II (BG0/1_) 1.8 16V (BG0B, BG0M) F4P 770, F4P 773 88 kW	2001–2007	F4P 770, F4P 773	88 kW
RENAULT LAGUNA II (BG0/1_) 1.8 16V (BG06, BG0J, BG0M) F4P 771, F4P 774, F4P 775, F4P 770, F4P 773 85 kW	2001–2007	F4P 771, F4P 774, F4P 775, F4P 770, F4P 773	85 kW
RENAULT LAGUNA II Grandtour (KG0/1_) 1.8 16V (KG0J) F4P 771, F4P 774, F4P 775, F4P 770 85 kW	2001–2005	F4P 771, F4P 774, F4P 775, F4P 770	85 kW
RENAULT LAGUNA II Grandtour (KG0/1_) 1.8 16V (KG0B, KG0M) F4P 770, F4P 773 88 kW	2001–2005	F4P 770, F4P 773	88 kW
RENAULT SCÉNIC I MPV (JA0/1_, FA0_) 1.8 16V (JA12, JA1R, JA1M, JA1A) F4P 720, F4P 722 85 kW	2001–2003	F4P 720, F4P 722	85 kW
RENAULT MEGANE I Coach (DA0/1_) 2.0 16V F4R 746 102 kW	2002–2003	F4R 746	102 kW
RENAULT MEGANE I Cabriolet (EA0/1_) 2.0 16V F4R 770, F4R 746 102 kW	2002–2003	F4R 770, F4R 746	102 kW
RENAULT SCÉNIC I MPV (JA0/1_, FA0_) 1.8 4x4 F4P 722 85 kW	2000–2001	F4P 722	85 kW
RENAULT MEGANE I Classic (LA0/1_) 2.0 RT F5R 740, F4R 747 103 kW	2001–2003	F5R 740, F4R 747	103 kW
