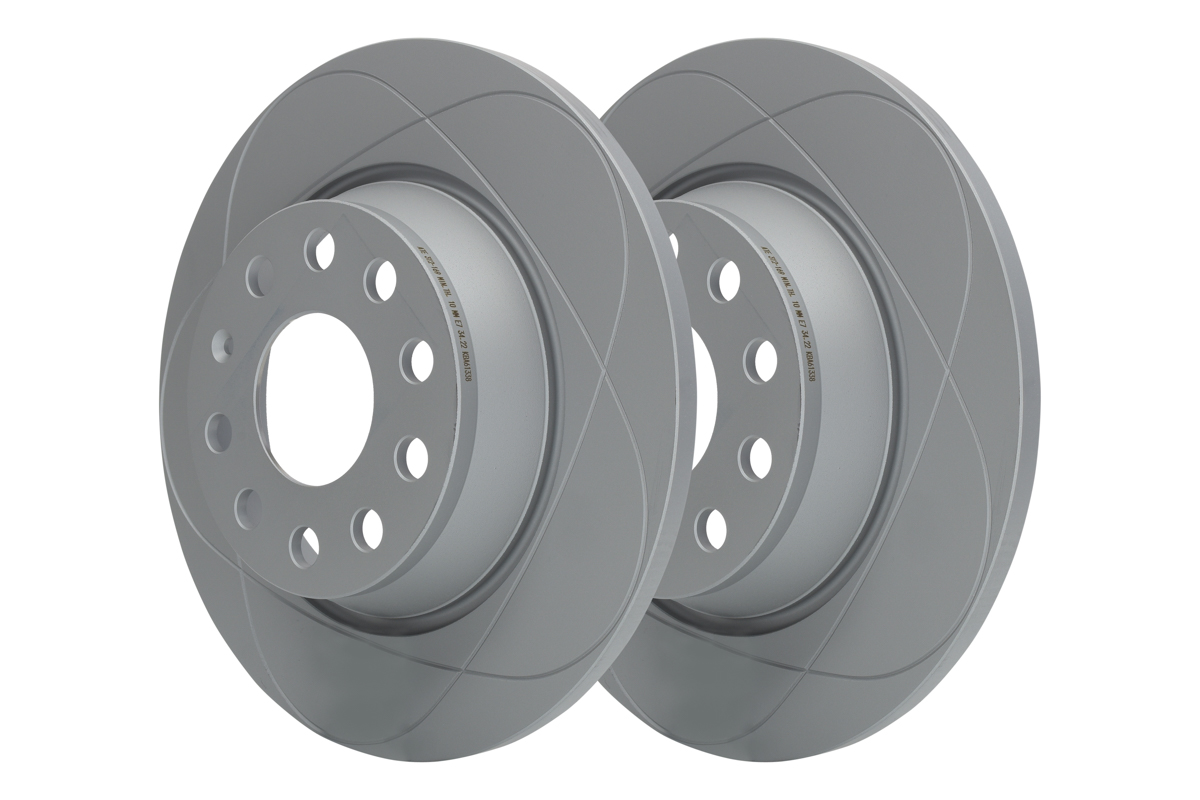

Name: ATE 24.0312-0169.1 Brake Disc – 282×12 mm
Brand: ATE
SKU: ATE24031201691
Price: 52.16 EUR
Availability: InStock

Part Number: 24.0312-0169.1

Compatible with: AUDI (A3, Q3), SEAT (ALHAMBRA, ALTEA, LEON, TOLEDO), SKODA (OCTAVIA, SUPERB, YETI), VW (CC, EOS, GOLF, JETTA, PASSAT, SHARAN, TIGUAN, TOURAN)

Brand: ATE

Only 2 left in stock

Order before 4pm → dispatched next business day

Original Parts

30-Day Returns

Shipping:16 October

Delivery Time: 19 – 21 October

Number of Holes: 5
Height [mm]: 48.6
Inner Diameter [mm]: 159
Brake Disc Thickness [mm]: 12
No. of holes 2: 9
Minimum thickness [mm]: 10
Outer Diameter [mm]: 282
Bore Ø [mm]: 15.3
Surface: Coated
Supplementary Article/Info 2: with screws
Bolt Hole Circle Ø [mm]: 112
Centering Diameter [mm]: 65
EAN: 4006633419109
with bolts/screws
Bore Diameter [mm]: 15.3
Brake Disc Type: solid

Safety and product information:

Technical Data

Number of Holes	5
Height [mm]	48.6
Inner Diameter [mm]	159
Brake Disc Thickness [mm]	12
No. of holes 2	9
Minimum thickness [mm]	10
Outer Diameter [mm]	282
Bore Ø [mm]	15.3

Surface	Coated
Supplementary Article/Info 2	with screws
Bolt Hole Circle Ø [mm]	112
Centering Diameter [mm]	65
EAN	4006633419109
Bore Diameter [mm]	15.3
Brake Disc Type	solid

Modification	Years	Engine model	kW
VW 33
VW PASSAT B7 (362) 1.4 TSI CAXA 90 kW	2010–2014	CAXA	90 kW
VW PASSAT B7 (362) 1.8 TSI CDAA 118 kW	2010–2014	CDAA	118 kW
VW PASSAT B7 (362) 2.0 TSI CCZB 155 kW	2010–2014	CCZB	155 kW
VW PASSAT B7 (362) 1.6 TDI CAYC 77 kW	2010–2014	CAYC	77 kW
VW PASSAT B7 (362) 2.0 TDI CFFB 103 kW	2010–2014	CFFB	103 kW
VW PASSAT B7 (362) 2.0 TDI 4motion CFFB 103 kW	2010–2014	CFFB	103 kW
VW PASSAT B7 (362) 2.0 TDI CLLA, CFGB 125 kW	2010–2014	CLLA, CFGB	125 kW
VW PASSAT B7 (362) 2.0 TDI 4motion CFGB 125 kW	2010–2013	CFGB	125 kW
VW PASSAT B7 (362) 1.4 TSI EcoFuel CDGA 110 kW	2010–2014	CDGA	110 kW
VW PASSAT B7 Variant (365) 1.4 TSI CAXA 90 kW	2010–2014	CAXA	90 kW
VW PASSAT B7 Variant (365) 1.8 TSI CDAA 118 kW	2010–2014	CDAA	118 kW
VW PASSAT B7 Variant (365) 1.6 TDI CAYC 77 kW	2010–2014	CAYC	77 kW
VW PASSAT B7 Variant (365) 2.0 TSI CCZB 155 kW	2010–2015	CCZB	155 kW
VW PASSAT B7 Variant (365) 2.0 TDI CFFB 103 kW	2010–2014	CFFB	103 kW
VW PASSAT B7 Variant (365) 2.0 TDI 4motion CFFB 103 kW	2010–2014	CFFB	103 kW
VW PASSAT B7 Variant (365) 2.0 TDI CLLA, CFGB 125 kW	2010–2014	CLLA, CFGB	125 kW
VW PASSAT B7 Variant (365) 2.0 TDI 4motion CFGB 125 kW	2010–2013	CFGB	125 kW
VW PASSAT B7 Variant (365) 1.4 TSI EcoFuel CDGA 110 kW	2010–2014	CDGA	110 kW
VW GOLF PLUS V (5M1, 521) 1.6 BiFuel CHGA 75 kW	2009–2013	CHGA	75 kW
VW GOLF VI (5K1) 1.6 MultiFuel CMXA, CCSA 75 kW	2008–2012	CMXA, CCSA	75 kW
VW GOLF PLUS V (5M1, 521) 1.6 TDI CAYB 66 kW	2009–2013	CAYB	66 kW
VW PASSAT B6 Variant (3C5) 2.0 TDI BWV 88 kW	2005–2007	BWV	88 kW
VW SHARAN (7N1, 7N2) 2.0 TFSI CCZA 147 kW	2010–2015	CCZA	147 kW
VW GOLF VI Variant (AJ5) 1.6 MultiFuel CMXA, CCSA 75 kW	2010–2013	CMXA, CCSA	75 kW
VW PASSAT B7 (362) 3.6 FSI 4motion BWS 220 kW	2011–2014	BWS	220 kW
VW PASSAT B7 Variant (365) 3.6 FSI 4motion BWS 220 kW	2011–2014	BWS	220 kW
VW GOLF PLUS V (5M1, 521) 1.2 TSI CBZA 63 kW	2010–2013	CBZA	63 kW
VW TIGUAN (5N_) 2.0 TDI 4motion CBBA 120 kW	2008–2009	CBBA	120 kW
VW GOLF VI (5K1) 1.2 TSI CBZA 63 kW	2010–2012	CBZA	63 kW
VW EOS (1F7, 1F8) 2.0 TDI CFFA 100 kW	2010–2015	CFFA	100 kW
VW GOLF VI (5K1) 2.0 GTi CDLG 173 kW	2011–2012	CDLG	173 kW
VW PASSAT B7 (362) 1.4 TSI MultiFuel CKMA 118 kW	2010–2014	CKMA	118 kW
VW PASSAT B7 Variant (365) 1.4 TSI MultiFuel CKMA 118 kW	2010–2014	CKMA	118 kW
SEAT 7
SEAT ALHAMBRA (710, 711) 1.4 TSI CAVA, CNWB, CTHA 110 kW	2010–2015	CAVA, CNWB, CTHA	110 kW
SEAT ALHAMBRA (710, 711) 2.0 TDI CFFB 103 kW	2010–2015	CFFB	103 kW
SEAT ALHAMBRA (710, 711) 2.0 TDI CFGB 125 kW	2010–2013	CFGB	125 kW
SEAT LEON (1P1) 1.6 TDI CAYB 66 kW	2010–2012	CAYB	66 kW
SEAT LEON (1P1) 1.6 TDI CAYC 77 kW	2010–2012	CAYC	77 kW
SEAT ALHAMBRA (710, 711) 2.0 TSI CCZA 147 kW	2010–2012	CCZA	147 kW
SEAT ALHAMBRA (710, 711) 2.0 TDI DLTC, CUVA, CFFE, DFLD 85 kW	2011–2022	DLTC, CUVA, CFFE, DFLD	85 kW
SKODA 10
SKODA SUPERB II (3T4) 1.8 TSI CDAB 112 kW	2009–2015	CDAB	112 kW
SKODA SUPERB II Estate (3T5) 1.8 TSI CDAB 112 kW	2009–2015	CDAB	112 kW
SKODA SUPERB II Estate (3T5) 1.8 TSI 4x4 CDAB 112 kW	2009–2015	CDAB	112 kW
SKODA SUPERB II (3T4) 2.0 TFSI CCZA 147 kW	2010–2015	CCZA	147 kW
SKODA SUPERB II (3T4) 1.6 TDI CAYC 77 kW	2010–2015	CAYC	77 kW
SKODA SUPERB II Estate (3T5) 2.0 TFSI CCZA 147 kW	2010–2015	CCZA	147 kW
SKODA SUPERB II Estate (3T5) 1.6 TDI CAYC 77 kW	2010–2015	CAYC	77 kW
SKODA YETI (5L) 1.6 TDI CAYC 77 kW	2010–2015	CAYC	77 kW
SKODA YETI (5L) 1.8 TSI 4x4 CDAB 112 kW	2009–2017	CDAB	112 kW
SKODA SUPERB II Estate (3T5) 2.0 TDI 16V 4x4 CFFB 103 kW	2010–2015	CFFB	103 kW

Show more (458)

SEAT	1K0 615 601 AD 1K0 615 601 M 5Q0 615 601 G JZW 615 601 F
SKODA	1K0 615 601 AD 1K0 615 601 M 5Q0 615 601 G JZW 615 601 F
VAG	1K0 615 601 AD 1K0 615 601 M 5Q0 615 601 G JZW 615 601 F

HELLA	8DD 355 112-131 HELLA 8DD 355 112-141
PAGID	54408 54408PRO
VALEO	297031 196021 VALEO 197031
BOSCH	BOSCH 0 986 479 247 BOSCH 0 986 479 B93
TEXTAR	92140800 TEXTAR 92140803 98200 1408 0 1 98200 1408 0 1 PRO
JURID	562258J
BENDIX	562258B
MINTEX	MDC1698 MDC1698C
QUINTON HAZELL	BDC5495 BSF5495
GRAF	DF29852
FEBI BILSTEIN	…+1 more FEBI BILSTEIN 24382
TRW	…+1 more TRW DF4558
BREMBO	…+5 more BREMBO 08.A202.10 BREMBO 08.A202.11 BREMBO 08.A202.1X RD.210.000 RS.210.000
FERODO	…+2 more FERODO DDF1306 FERODO DDF1306C
ZIMMERMANN	…+2 more 100.3315.00 ZIMMERMANN 100.3315.20
FTE	…+1 more BS5495
DELPHI	…+3 more BG3954 DELPHI BG3954C DELPHI BG5020C
METELLI	…+1 more 23-0852
NK	…+2 more 2047116 2047133
LPR	…+1 more LPR A1005P
CAR	…+1 more 142.1024
HELLA PAGID	…+2 more 8DD 355 112-131 HELLA PAGID 8DD 355 112-141
sbs	…+1 more 18152047116
CIFAM	…+1 more 800-852
