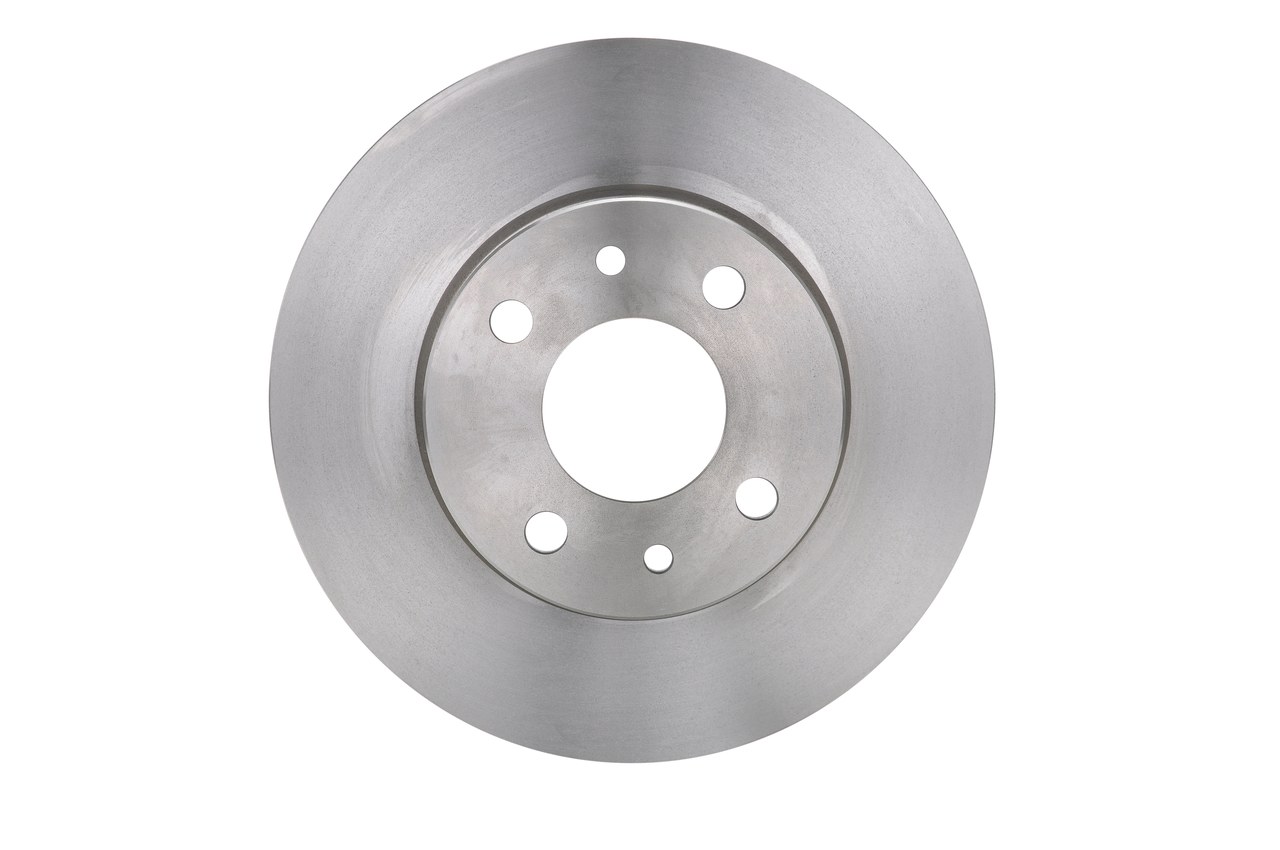

BOSCH 0 986 478 238 Brake Disc – 251.5×10 mm

Part Number: 0 986 478 238

Compatible with: ALFA ROMEO (164), FIAT (BRAVO, CROMA, LINEA, MULTIPLA, STILO), LANCIA (DELTA, LYBRA, THEMA)

Brand: BOSCH

€20.03

Shipping:28 September

Delivery Time: 1 – 3 October

Number of Holes: 4
Height [mm]: 50.6
Bore Diameter up to [mm]: 13
Brake Disc Thickness [mm]: 10
Minimum thickness [mm]: 9
Outer Diameter [mm]: 251.5
Surface: Oiled
fulfils ECE norm: ECE-R90
Bolt Hole Circle Ø [mm]: 98
Centering Diameter [mm]: 59.02
EAN: 4047024250284
ECE-R90
13
Brake Disc Type: solid

Safety and product information:

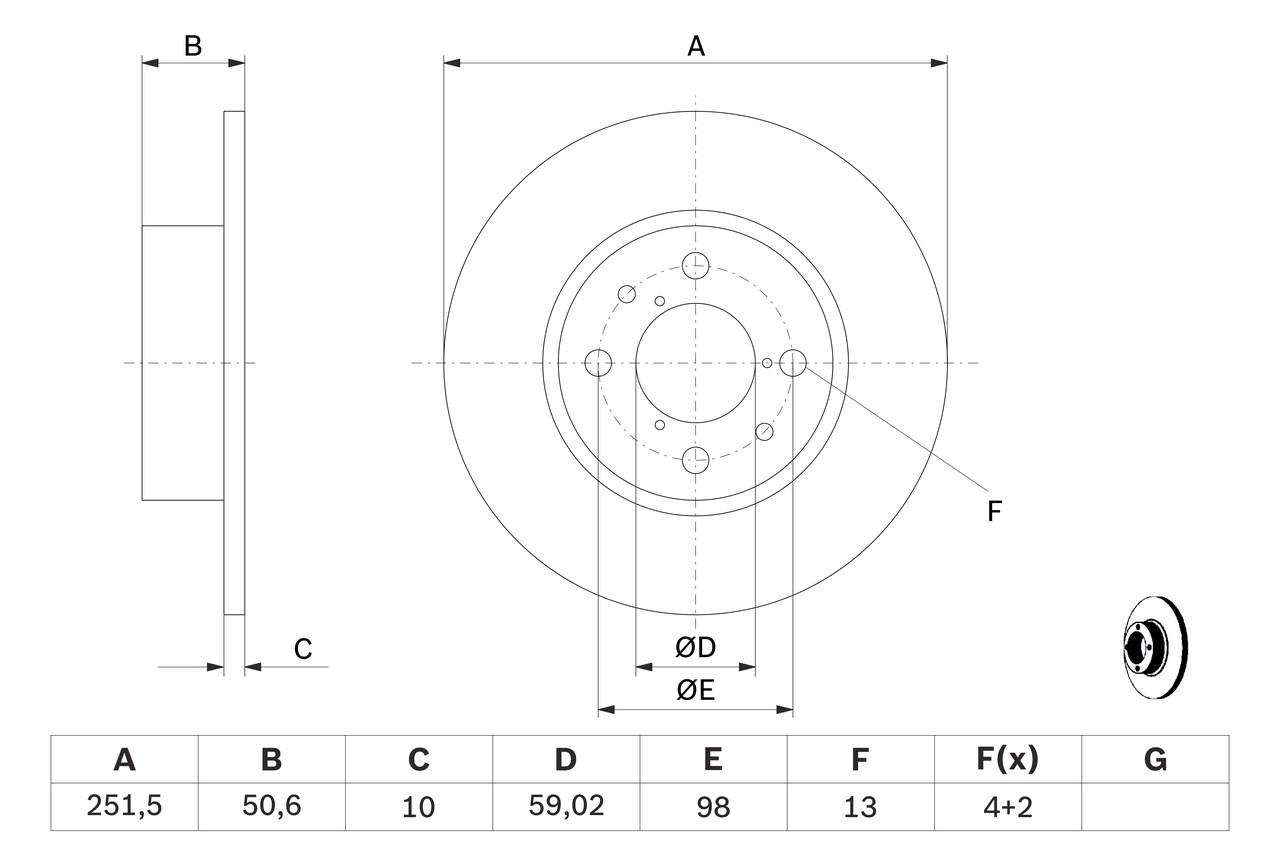

Technical Data

Number of Holes	4
Height [mm]	50.6
Bore Diameter up to [mm]	13
Brake Disc Thickness [mm]	10
Minimum thickness [mm]	9
Outer Diameter [mm]	251.5

Surface	Oiled
fulfils ECE norm	ECE-R90
Bolt Hole Circle Ø [mm]	98
Centering Diameter [mm]	59.02
EAN	4047024250284
Brake Disc Type	solid

Modification	Years	Engine model	kW
ALFA ROMEO 3
ALFA ROMEO 164 (164_) 2.0 Twin Spark (164.A2C, 164.A2L, 164A2H) AR 06416, AR 06420 105 kW	1987–1992	AR 06416, AR 06420	105 kW
ALFA ROMEO 164 (164_) 2.0 Twin Spark (164.A2H, 164.A2) AR 06420 109 kW	1987–1992	AR 06420	109 kW
ALFA ROMEO 164 (164_) 2.0 (164A2C) AR 06416 102 kW	1987–1998	AR 06416	102 kW
FIAT 20
FIAT BRAVO II (198_) 1.4 16V (198AXS1B) 198 A7.000 103 kW	2010–2014	198 A7.000	103 kW
FIAT CROMA (154_) 2000 CHT (154.AC) 154 A1.000 66 kW	1985–1989	154 A1.000	66 kW
FIAT CROMA (154_) 2000 i.e. (154.AM) 834 B.048 83 kW	1986–1990	834 B.048	83 kW
FIAT CROMA (154_) 2000 i.e. (154.AD) 154 C3.000, 834 B.000 88 kW	1987–1992	154 C3.000, 834 B.000	88 kW
FIAT CROMA (154_) 2000 i.e. Turbo (154.AM) 154 A2.000 114 kW	1985–1990	154 A2.000	114 kW
FIAT CROMA (154_) 2500 TD (154.AE) 8144.91.2000 74 kW	1985–1989	8144.91.2000	74 kW
FIAT CROMA (154_) 2500 TD (154.LL, 154.PL) 8144.97 Y, 8144.97, 8144.97.2400 85 kW	1989–1996	8144.97 Y, 8144.97, 8144.97.2400	85 kW
FIAT CROMA (154_) 2000 i.e. (154.AM, 154.LM) 154 C3.046, 834 B.146 85 kW	1987–1996	154 C3.046, 834 B.146	85 kW
FIAT CROMA (154_) 2000 i.e. Turbo (154.AM, 154.LM) 834 C.146, 154 C4.046 110 kW	1987–1996	834 C.146, 154 C4.046	110 kW
FIAT BRAVO II (198_) 1.6 D Multijet (198AXM1B) 198 A6.000 66 kW	2008–2014	198 A6.000	66 kW
FIAT BRAVO II (198_) 1.9 D Multijet (198AXD1A) 192 B4.000, 192 A1.000 85 kW	2006–2009	192 B4.000, 192 A1.000	85 kW
FIAT CROMA (154_) 2000 16V 154 E1.000 101 kW	1992–1996	154 E1.000	101 kW
FIAT CROMA (154_) 2500 V6 834 G.000 119 kW	1993–1996	834 G.000	119 kW
FIAT CROMA (154_) 2000 i.e. Turbo 834 C.146 111 kW	1986–1988	834 C.146	111 kW
FIAT CROMA (154_) 1900 Turbo D i.d. (154.LL, 154.PL) 154 C6.000 66 kW	1987–1992	154 C6.000	66 kW
FIAT CROMA (154_) 1900 Turbo D i.d. 154 D1.000 69 kW	1992–1996	154 D1.000	69 kW
FIAT BRAVO II (198_) 1.4 LPG (198AXA1B) 192 B2.000 66 kW	2008–2014	192 B2.000	66 kW
FIAT CROMA (154_) 2500 D 8144.67 55 kW	1985–1989	8144.67	55 kW
FIAT CROMA (154_) 2500 TDE 8144.97 S 77 kW	1991–1996	8144.97 S	77 kW
FIAT BRAVO II (198_) 2.0 D Multijet (198AXPIB) 844 A2.000, 198 A8.000 120 kW	2008–2014	844 A2.000, 198 A8.000	120 kW
LANCIA 27
LANCIA THEMA (834_) 2000 i.e. (834AB) 834 B.048 83 kW	1986–1988	834 B.048	83 kW
LANCIA THEMA (834_) 2000 i.e. (834BV) 834 B.146 85 kW	1987–1992	834 B.146	85 kW
LANCIA THEMA (834_) 2000 i.e.Turbo (834CV) 834 C.146 110 kW	1986–1990	834 C.146	110 kW
LANCIA THEMA (834_) 2850 V6 i.e. (834AD, 834CD, 834BD) 834 E.146 108 kW	1988–1992	834 E.146	108 kW
LANCIA THEMA (834_) 2850 V6 i.e. (834F) 834 E.146, 834 E.000 110 kW	1984–1988	834 E.146, 834 E.000	110 kW
LANCIA THEMA (834_) 2500 Turbo D (834D) 8144.91 74 kW	1984–1988	8144.91	74 kW
LANCIA THEMA (834_) 2500 Turbo DS (834AM) 8144. 97S 77 kW	1988–1992	8144. 97S	77 kW
LANCIA THEMA (834_) 2000 i.e. 16V (834AI) 834 B2.246 104 kW	1989–1992	834 B2.246	104 kW
LANCIA THEMA (834_) 2000 i.e. 16V Turbo (834AL) 834 C1.246 130 kW	1989–1992	834 C1.246	130 kW
LANCIA THEMA SW (834_) 2000 i.e. 16V (834AI) 834 B2.246 104 kW	1989–1992	834 B2.246	104 kW
LANCIA THEMA SW (834_) 2000 Turbo (834.FA, 834.BV, 834.CV) 834 C.146 110 kW	1988–1992	834 C.146	110 kW
LANCIA THEMA SW (834_) 2000 16V (834FA) 834 F1.000 112 kW	1992–1994	834 F1.000	112 kW
LANCIA THEMA SW (834_) 2000 i.e. 16V Turbo (834AL) 834 C1.246 130 kW	1989–1993	834 C1.246	130 kW
LANCIA THEMA SW (834_) 3000 V6 (834GD, 834FD) 834 F.000 126 kW	1992–1994	834 F.000	126 kW
LANCIA THEMA (834_) 3000 V6 (834GD, 834FD) 834 F.000 126 kW	1992–1994	834 F.000	126 kW
LANCIA THEMA (834_) 2000 i.e. Turbo (834C) 834 C.000 122 kW	1984–1989	834 C.000	122 kW
LANCIA THEMA (834_) 2000 i.e. (834B) 834 B.000 88 kW	1984–1988	834 B.000	88 kW
LANCIA THEMA (834_) 2000 16V (834FA) 834 F1.000 112 kW	1992–1993	834 F1.000	112 kW
LANCIA THEMA (834_) 2500 Turbo DS (834FE, 834LE) 8144.97 Y 85 kW	1992–1994	8144.97 Y	85 kW
LANCIA THEMA (834_) 2000 16V Turbo (834GC, 834FC) 834 F2.000 148 kW	1992–1994	834 F2.000	148 kW
LANCIA THEMA SW (834_) 2500 Turbo DS (834D) 8144.91 74 kW	1987–1990	8144.91	74 kW
LANCIA THEMA SW (834_) 2000 Turbo 16V (834GC, 834FC) 834 F2.000 148 kW	1992–1994	834 F2.000	148 kW
LANCIA THEMA (834_) 2000 16V Turbo (834AC) 834 C1.000 133 kW	1988–1990	834 C1.000	133 kW
LANCIA THEMA SW (834_) 2500 Turbo DS (834FE, 834LE) 8144.97 Y 85 kW	1992–1994	8144.97 Y	85 kW
LANCIA DELTA III (844_) 1.6 D Multijet (844.AXF11, 844.AXF1A) 955 A4.000 85 kW	2008–2014	955 A4.000	85 kW
LANCIA DELTA III (844_) 1.6 D Multijet (844.AXP1A) 844 A3.000 77 kW	2011–2014	844 A3.000	77 kW
LANCIA DELTA III (844_) 2.0 D Multijet (844.AXG1A, 844.AXN1A) 844 A2.000 120 kW	2008–2014	844 A2.000	120 kW

Show more (148)

ALFA ROMEO	164202610001 60801755 82433859 82434070
FIAT	164202610001 46758715 46831042 60801755 82394417 82394418 82433859 82434070
LANCIA	164202610001 46758715 46831042 60801755 82394418 82433859 82434070

ATE	ATE 24 0110 0190 1
PAGID	51803 PAGID 51803NC 51803PRO
VALEO	DF066 185087 VALEO 186146 496097 VALEO 672913
BOSCH	BOSCH 0 986 479 B26
TEXTAR	92034200 TEXTAR 92034203 98200 0342 98200034201
JURID	561329J JURID 561329JC 561329JC1 8290364320
BENDIX	B 338648 561329B
MAGNETI MARELLI	353611511540 MAGNETI MARELLI 360406021000 360406021003 431602040590
MINTEX	BDS1110 MDC389
QUINTON HAZELL	BDC3442 BSF3442
GRAF	DF29193
TRW	TRW DF1790
BREMBO	08 3126 10 BREMBO 08 3126 11 BREMBO 08 3126 14
FERODO	FERODO DDF066 FERODO DDF066C DDF066C1 DDF066X DDF0661 DRF066 WN423
ZIMMERMANN	230235200 ZIMMERMANN 230235220 230235250 ZIMMERMANN 230235252
FTE	BS3442
BRADI	1151154
PEX	140151
DELPHI	DELPHI BG2322 BG2322C18B1 DELPHI BG2386 BG322
ROULUNDS RUBBER	D2116
BRECO	BS 7332
SEBRO	3203
METELLI	230193 800193
NK	209928 319928
REMSA	REMSA 615000
ROADHOUSE	ROADHOUSE 6150 00
LPR	LPR A2161P A2161PR
TRUSTING	DF647
CAR	142415
APEC	DSK637 SDK6165
ABEX	W0423
GIRLING	DF1790 6017903
PILENGA	5059
sbs	1815202317 209928
RAICAM	RD01053
NUOVA TECNODELTA	HPD415
OPTIMAL GERMANY	BS1500C
