| Length 1 [mm] | 32,00 |
|---|---|
| Length 3 [mm] | 41,00 |
| Voltage [V] | 12 |
| Alternator Charge Current [A] | 180 |
|---|---|
| Pulleys | with freewheel belt pulley |
|
AFP0068 |
| Outer diameter [mm] | 49,10 |
| Inner diameter [mm] | 17,00 |
| Length 1 [mm] | 33,60 |
| Number of grooves | 7 |
| Thread Size | M16x1,5 |
| Length 2 [mm] | 2,70 |
| Quantity | 1 |
|
AFP0068(LUK) |
| Outer diameter [mm] | 48,90 |
| Inner diameter [mm] | 17,00 |
| Length 1 [mm] | 34,50 |
| Number of grooves | 7 |
| Thread Size | M16x1,5 |
| Length 2 [mm] | 2,30 |
| Quantity | 1 |
|

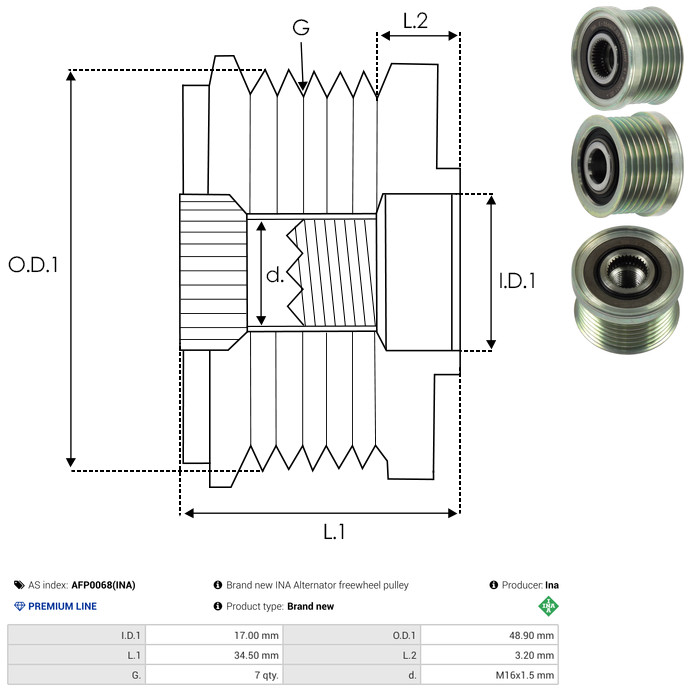

AFP0068(INA) |
| Outer diameter [mm] | 48,90 |
| Inner diameter [mm] | 17,00 |
| Length 1 [mm] | 34,50 |
| Number of grooves | 7 |
| Thread Size | M16x1,5 |
| Length 2 [mm] | 3,20 |
| Quantity | 1 |
|
ARE0135 |
| Voltage [V] | 12 |
| Quantity | 1 |
|
|
AS0040 |
| Voltage [V] | 12 |
| Alternator Charge Current [A] | 180 |
| Outer diameter 2 [mm] | 143,10 |
| Inner diameter [mm] | 105,80 |
| Height 1 [mm] | 35,40 |
| Height 2 [mm] | 37,00 |
| Outer diameter 1 [mm] | 131,20 |
| Quantity | 1 |
|
|
ARE0135(BOSCH) |
| Voltage [V] | 12 |
| Quantity | 1 |
|
|
ARE0135P |
| Voltage [V] | 12 |
| Quantity | 1 |
|
|
