Name: BOSCH 0 986 039 180 Alternator – for VOLVO
Brand: BOSCH
SKU: BOSCH0986039180
Price: 230.55 EUR
Availability: PreOrder

Part Number: 0 986 039 180

Compatible with: VOLVO (940, 960)

Brand: BOSCH

€230.55

Shipping:Tomorrow (24 September)

Delivery Time: 27 – 29 September

Belt Pulley Ø [mm]: 65
Alternator Charging Current [A]: 100
Voltage [V]: 14
Number of grooves: 2
Distance from belt pulley to alternator [mm]: 93
Length [mm]: 174
Rotation Direction: Clockwise rotation
Alternator Type: excl. vacuum pump
Fastening Type: Single pivoted lever
Pulleys: with double pulley
EAN: 3165141090246
93
100
Recommended additional repairs: V-Belt/V-ribbed Belt

Safety and product information:

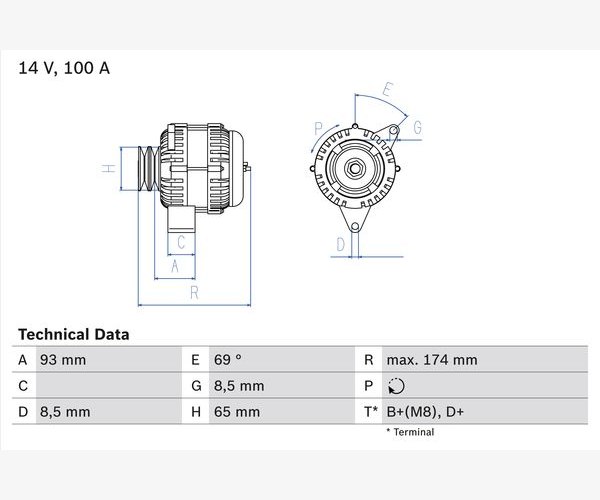

Technical Data

Belt Pulley Ø [mm]	65
Alternator Charging Current [A]	100
Voltage [V]	14
Number of grooves	2
Distance from belt pulley to alternator [mm]	93
Length [mm]	174

Rotation Direction	Clockwise rotation
Alternator Type	excl. vacuum pump
Fastening Type	Single pivoted lever
Pulleys	with double pulley
EAN	3165141090246
Recommended additional repairs	V-Belt/V-ribbed Belt

Modification	Years	Engine model	kW
VOLVO 32
VOLVO 940 (944) 2.0 B 200 F 82 kW	1992–1994	B 200 F	82 kW
VOLVO 940 (944) 2.3 B 230 FB, B 230 G 96 kW	1990–1994	B 230 FB, B 230 G	96 kW
VOLVO 940 Kombi (945) 2.0 B 200 F 82 kW	1992–1994	B 200 F	82 kW
VOLVO 940 Kombi (945) 2.3 B 230 FB 96 kW	1990–1994	B 230 FB	96 kW
VOLVO 940 Kombi (945) 2.3 Turbo B 230 FT 121 kW	1990–1994	B 230 FT	121 kW
VOLVO 940 II (944) 2.3 B 230 FB 96 kW	1994–1998	B 230 FB	96 kW
VOLVO 940 II (944) 2.3 B 230 FD 85 kW	1994–1995	B 230 FD	85 kW
VOLVO 940 II (944) 2.3 Turbo B 230 FT 121 kW	1994–1998	B 230 FT	121 kW
VOLVO 940 II Estate (945) 2.3 B 230 FB 96 kW	1994–1998	B 230 FB	96 kW
VOLVO 940 II Estate (945) 2.3 B 230 FD 85 kW	1994–1995	B 230 FD	85 kW
VOLVO 940 II Estate (945) 2.3 Turbo B 230 FT 121 kW	1994–1998	B 230 FT	121 kW
VOLVO 940 Kombi (945) 2.3 B 230 FD 85 kW	1992–1994	B 230 FD	85 kW
VOLVO 940 (944) 2.3 B 230 FD 85 kW	1992–1994	B 230 FD	85 kW
VOLVO 940 II Estate (945) 2.3 ti B 230 FK 99 kW	1995–1998	B 230 FK	99 kW
VOLVO 940 II (944) 2.3 ti B 230 FK 99 kW	1995–1998	B 230 FK	99 kW
VOLVO 940 (944) 2.3 Turbo B 230 FT 121 kW	1990–1994	B 230 FT	121 kW
VOLVO 940 Kombi (945) 2.3 B 234 F 114 kW	1990–1991	B 234 F	114 kW
VOLVO 940 (944) 2.3 Turbo B 230 FT+ 140 kW	1991–1993	B 230 FT+	140 kW
VOLVO 940 Kombi (945) 2.3 Turbo B 230 FT+ 140 kW	1991–1993	B 230 FT+	140 kW
VOLVO 940 II Estate (945) 2.3 Turbo B 230 FT 126 kW	1995–1998	B 230 FT	126 kW
VOLVO 940 Kombi (945) 2.0 Turbo B 200 FT 114 kW	1991–1995	B 200 FT	114 kW
VOLVO 940 (944) 2.3 B 234 F, B 234 G 114 kW	1990–1991	B 234 F, B 234 G	114 kW
VOLVO 940 II Estate (945) 2.0 Turbo B 200 FT 114 kW	1996–1998	B 200 FT	114 kW
VOLVO 940 II (944) 2.0 Turbo B 200 FT 114 kW	1996–1998	B 200 FT	114 kW
VOLVO 940 (944) 2.0 Turbo B 200 FT 114 kW	1990–1994	B 200 FT	114 kW
VOLVO 960 (964) 2.0 B 204 FT 140 kW	1990–1993	B 204 FT	140 kW
VOLVO 960 Kombi (965) 2.0 B 204 FT 140 kW	1990–1993	B 204 FT	140 kW
VOLVO 960 Kombi (965) 2.0 B 204 E 103 kW	1990–1993	B 204 E	103 kW
VOLVO 960 (964) 2.0 B 204 E 103 kW	1990–1993	B 204 E	103 kW
VOLVO 960 (964) 2.3 Turbo B 230 FT 121 kW	1990–1993	B 230 FT	121 kW
VOLVO 960 Kombi (965) 2.3 Turbo B 230 FT 121 kW	1990–1993	B 230 FT	121 kW
VOLVO 940 (944) 2.3 B 230 FK 99 kW	1991–1995	B 230 FK	99 kW

VOLVO

3523891 5003920 9130208 9130275 9162422 9447865

HELLA	8EL 737 018-001
LUCAS ELECTRICAL	LRA02705 LRA2705 LRB00377 LRB377
BOSCH	0 120 465 018 0 123 213 007 0 123 500 005 0 123 545 002 0 986 039 183
DENSO	1002118630 1002118631 1002118632
DELCO REMY	DRA9180
HC-PARTS	CA1069IR
